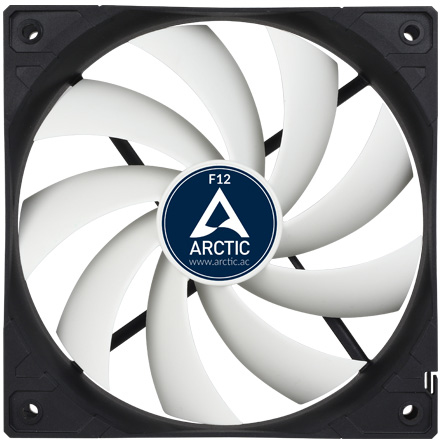

ARCTIC F12 - 120 mm Standard Case Fan

SKU

ACFAN00201A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

£11.27

In stock

120 mm, 1350 RPM, 53 CFM/ 90.1 m³/h, 1 mm/H²O, 12 V DC, 107 g, Black

Notify me when the price drops

Extremely quiet with low noise impeller
High airflow and static pressure
Fluid dynamic bearing ensures extended lifespan

Category: Processor Coolers

More Information

More Information
Suitable for	Computer case
Type	Fan
SKU	ACFAN00201A
EAN	4895213702942
Manufacturer	ARCTIC
Availability	In Stock
PDF URLs	View PDF

Reviews

Only registered users can write reviews. Please Sign in or create an account

Reasons To Buy

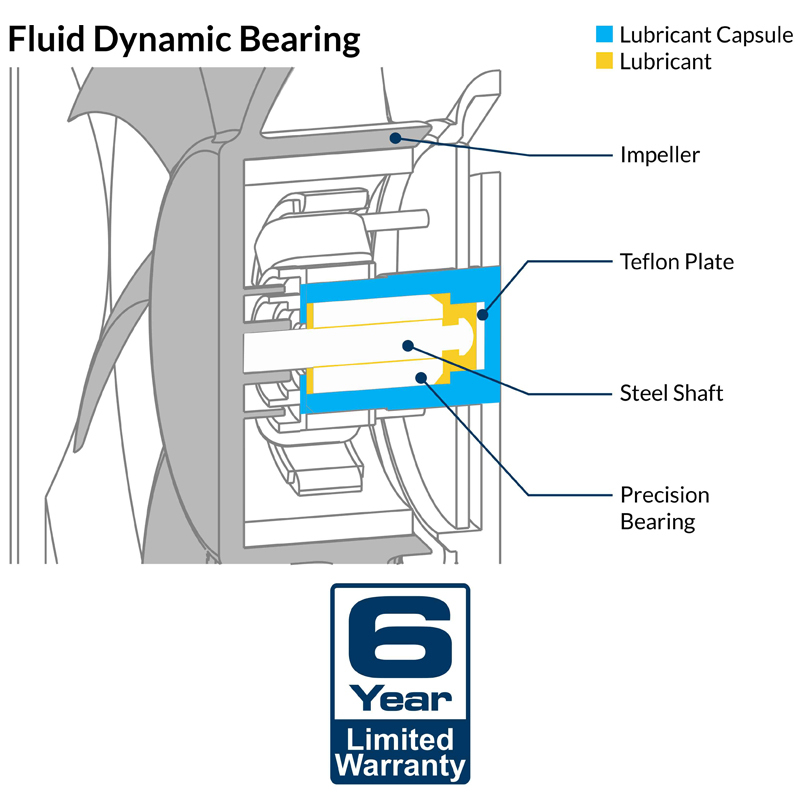

Long Service Life

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

Innovative Design Enables Quiet and Efficient Ventilation

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

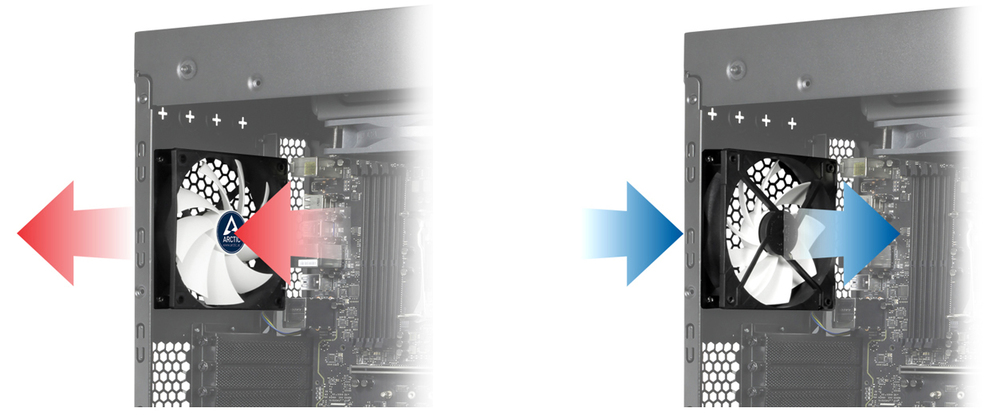

Two Way installation

Blow warm air out of the case

Draw cool air into your case

Description

The F12 case fans are exceptionally quiet and cost effective solutions with efficient cooling performance. The patented low noise impeller maximizes the volume of airflow to offer optimal performance at relatively low fan speed.

Specifications

Performance
Suitable location	Computer case
Fan connector	3-pin
Rotational speed (min)	0 RPM
Rotational speed (max)	1350 RPM
Noise level	0.3 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	53 cfm
Minimum air pressure	1 mmH2O
Airflow	90.1 m³/h
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Design
Fan connector	3-pin
Number of fans	1 fan(s)
Product colour	Black
Cable length	0.4 m
Technical details
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	53 cfm
Minimum air pressure	1 mmH2O
Airflow	90.1 m³/h
Number of fans	1 fan(s)
Cable length	0.4 m
Fan connector	3-pin
Ports & interfaces
Fan connector	3-pin
Power
Starting voltage	2.7 V
Voltage	12 V
Rated current	0.12 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C

Colour
Product colour	Black
Weight & dimensions
Package depth	27 mm
Package width	123 mm
Package height	123 mm
Width	120 mm
Package weight	130 g
Depth	120 mm
Height	25 mm
Weight	107 g
Cable length	0.4 m
Packaging data
Package depth	27 mm
Package width	123 mm
Package height	123 mm
Package weight	130 g
Package type	Box
Packaging content
Package type	Box
Other features
Country of origin	Hong Kong
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
