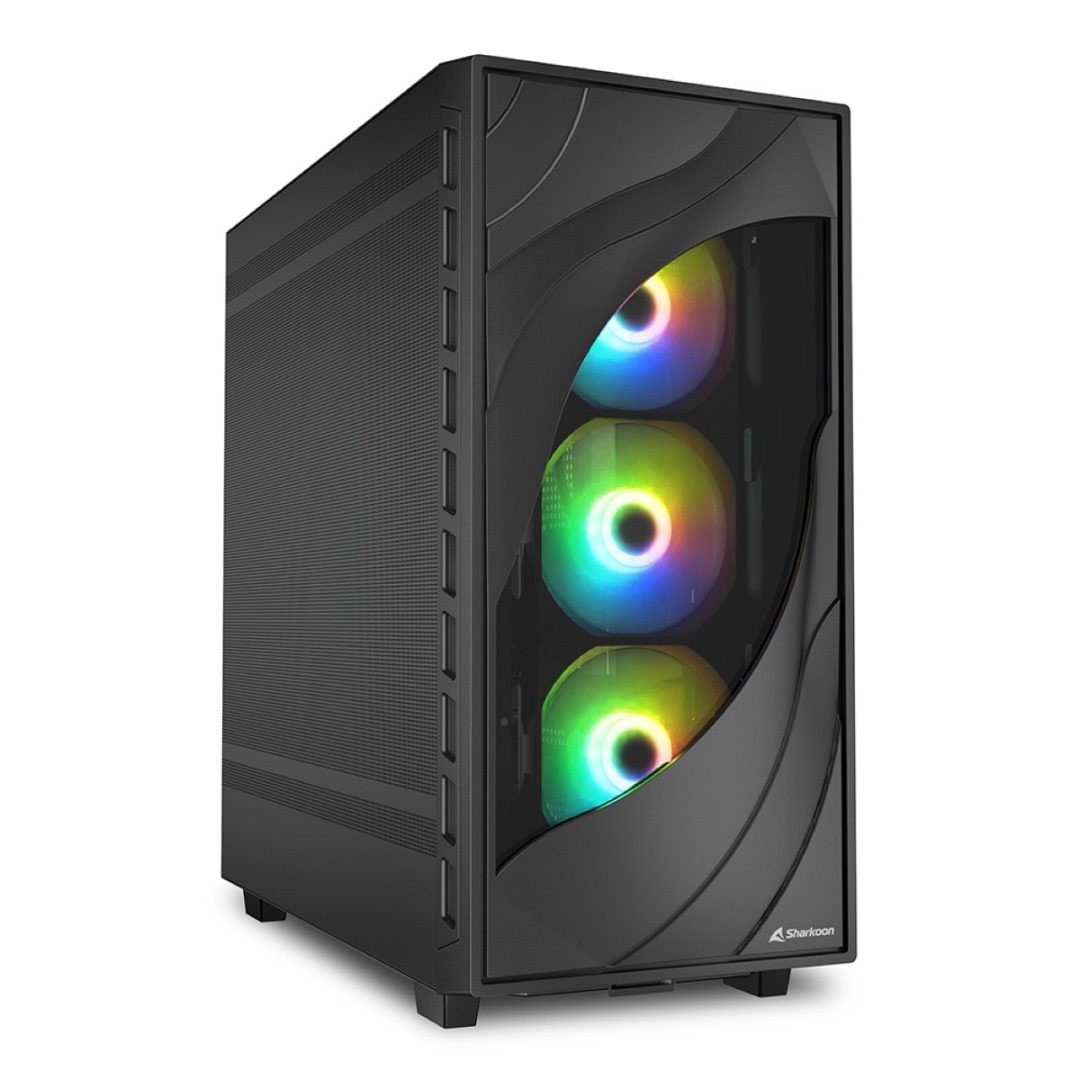

Sharkoon Rebel C80M RGB Black ATX Mid Tower Metal PC Gaming Case

Description

Made for your best gaming moments: The spacious Rebel C80M RGB ATX case combines a striking front-panel design with plenty of space for high-end hardware. A good airflow is ensured thanks to the perforated paneling combined with up to eleven fans or two radiators, while the detachable mounting frame and mounting bracket facilitate the installation of components. A graphics card holder and modern connections for smartphones and tablets are also included!

Good Airflow
With its all-round perforation, the Rebel C80M RGB is optimized for a strong airflow. Of course, dust filters behind the areas of air intake will effectively protect the case from dust and dirt.

Just Cool
A total of four 120 mm PWM fans with addressable RGB illumination are already pre-installed in the Rebel C80M RGB: three in the front and one on the rear panel. In total, there is space for up to eleven 120 mm fans or up to two 360 mm radiators.

No Stress with Installation
The Rebel C80M RGB has a mounting frame, on which fans or, alternatively, a radiator can be installed and then inserted under the top panel. Similarly, HDDS or SSDs can be conveniently installed on a mounting bracket and then inserted behind the mainboard tray.

Made for Chunky Graphics Cards
Because the Rebel C80M RGB has been made for big and chunky graphics cards, a graphics card holder with a rubberized support surface is pre-installed and at the ready. As with all Rebel series cases, the separately available Rebel C Series Vertical Graphics Card Kit 4.0 can be used for the vertical positioning and installation of the graphics card.

Maximum Space
With the possibility of installing up to three 3.5″ HDDs or up to three 2.5″ SSDs, the Rebel C80M RGB allows for ample storage space. In addition, graphics cards of up to 40 cm and CPU coolers with a height of 16.5 cm will find room in the case, as well as power supply units with a length of up to 27 cm.

Easy Connections
So that the latest devices can be easily connected, the Rebel C80M RGB has a USB-C port for mobile devices, two fast USB 3.0 ports and a TRRS port for audio and microphone.

Specifications:
General
Form Factor: ATX
Expansion Slots: 7
Interior Painting:
Cable Management System:
Side Panel: Metal
VGA Holder:
Weight & Dimensions
Weight: 8.6 kg
Dimensions (L x W x H): 48.9 x 23.0 x 49.5 cm
RGB Compatibility
Type: Addressable
Ports: 8
Manual Control: 22 Modes
Mainboard Compatibility: MSI Mystic Light Sync, ASUS Aura Sync, Gigabyte RGB Fusion Ready, ASRock Polychrome Sync
RGB Pinout: 5V-D-coded-G
Max. Drive Bays
3.5″: 3
2.5″: 3
I/O
Type-C (USB 3.2 Gen 2): 1
USB 3.0 (Top): 2
Audio (Top): TRRS
Fan Configuration
Front Panel: 3x 120 mm Addressable RGB LED PWM Fan (Pre-Installed) or 3x 140 mm Fan (Optional)
Side Panel: 4x 120 mm Fan* or Radiator (Optional)
Rear Panel: 1x 120 mm Addressable RGB LED PWM Fan (Pre-Installed)
Top Panel: 3x 120 mm Fan or 2x 140 mm Fan or Radiator (Optional)
Compatibility
Mainboard: Mini-ITX, Micro-ATX, ATX
Max. Length Graphics Cards: 40.0 cm
Max. Height CPU Cooler: 16.5 cm
Max. Length PSU: 27.0 cm
Max. Height Radiator incl. Fan (Top): 6.0 cm
Optional Accessories
Rebel C Series VGC Kit 4.0
