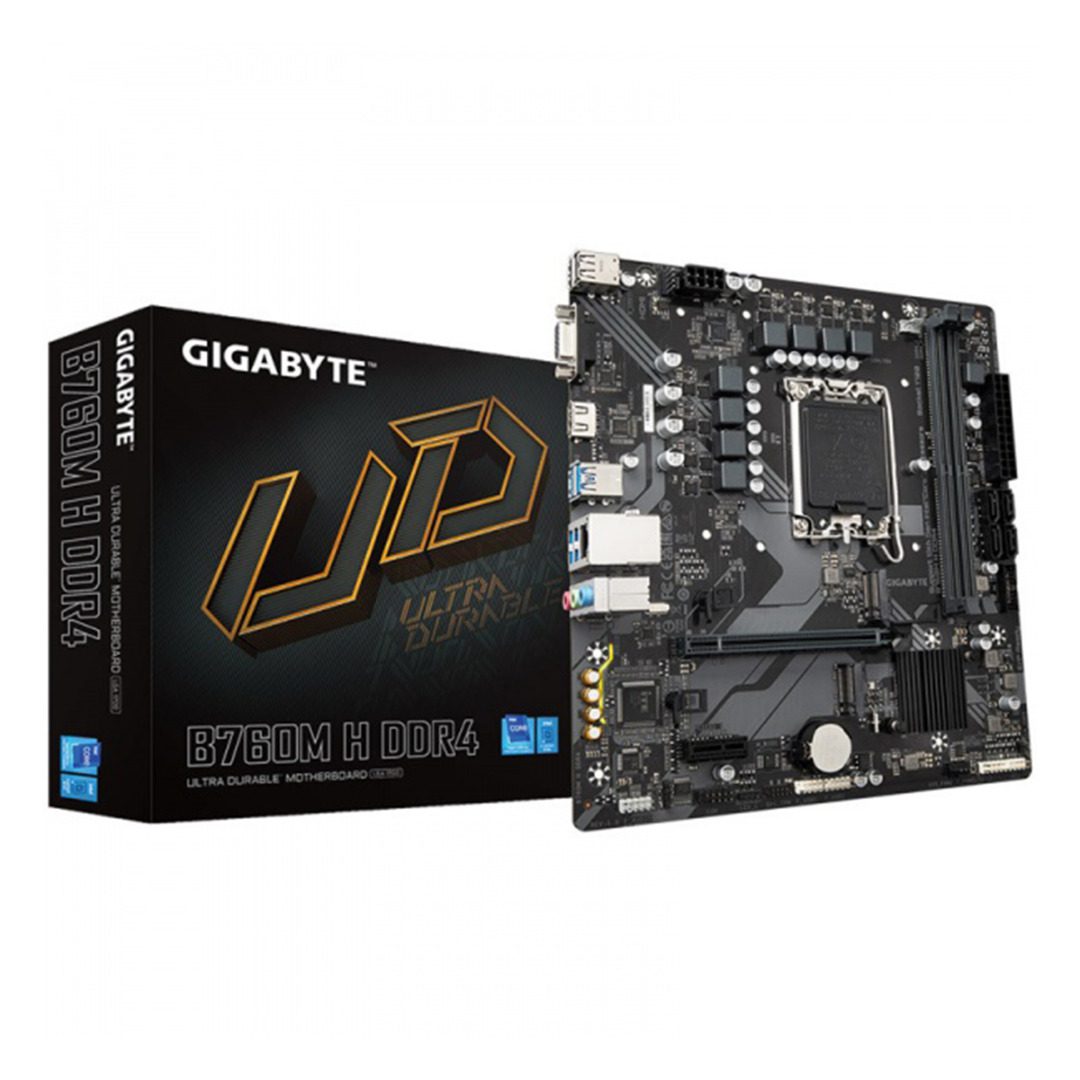

Gigabyte B760M H DDR4 Intel LGA1700 DDR4 Micro-ATX Motherboard

Description

Details:
– DDR4 memory up to 3,200 MHz
– 2x M.2 slots with PCIe 4.0 for fast NVMe SSDs
– USB on the I/O panel: 4x USB 3.0, 2x USB 2.0
– OC Features: 6+1 Phase VRMs, Dr.MOS, Heatspreader
– A total of 3 connections for fans and pumps

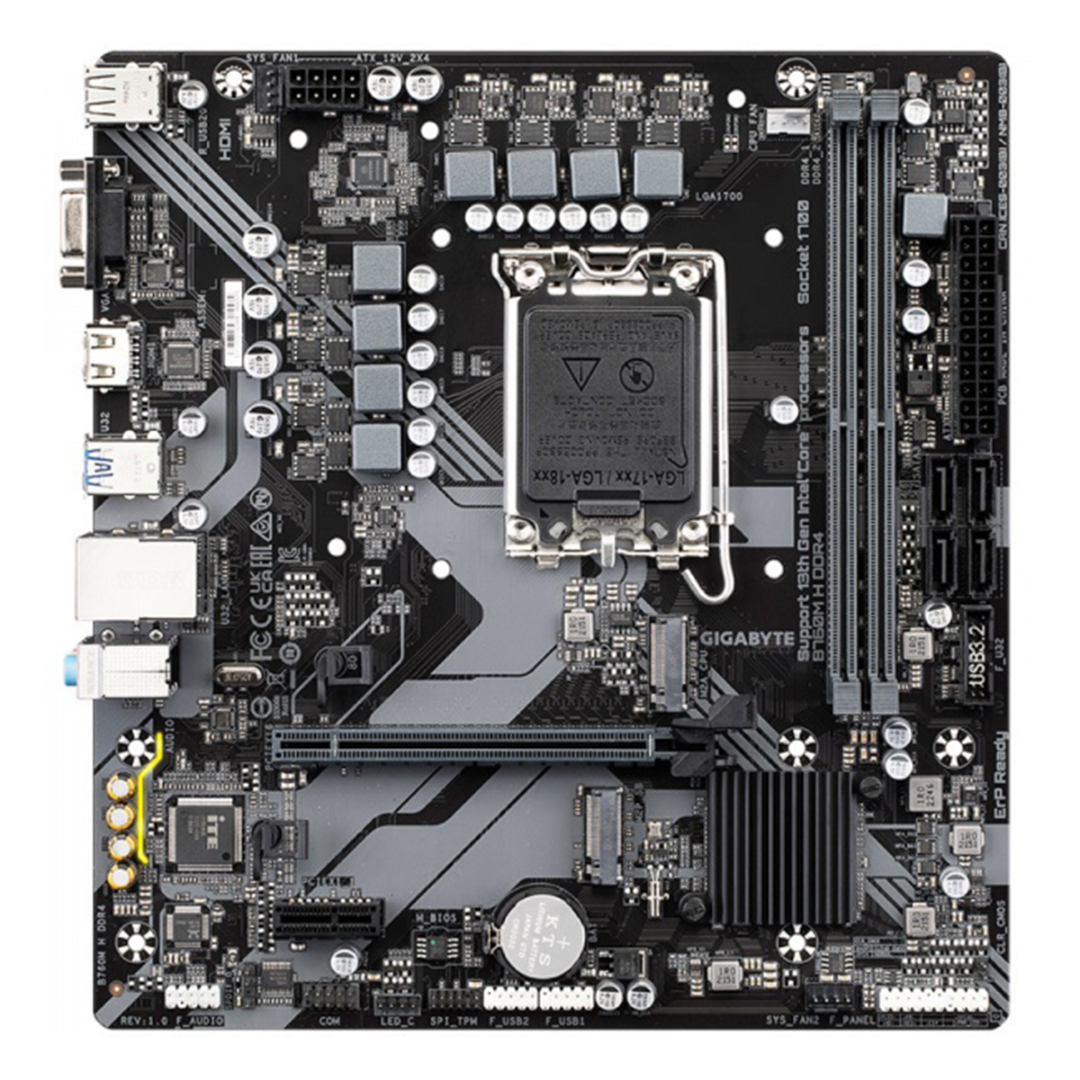

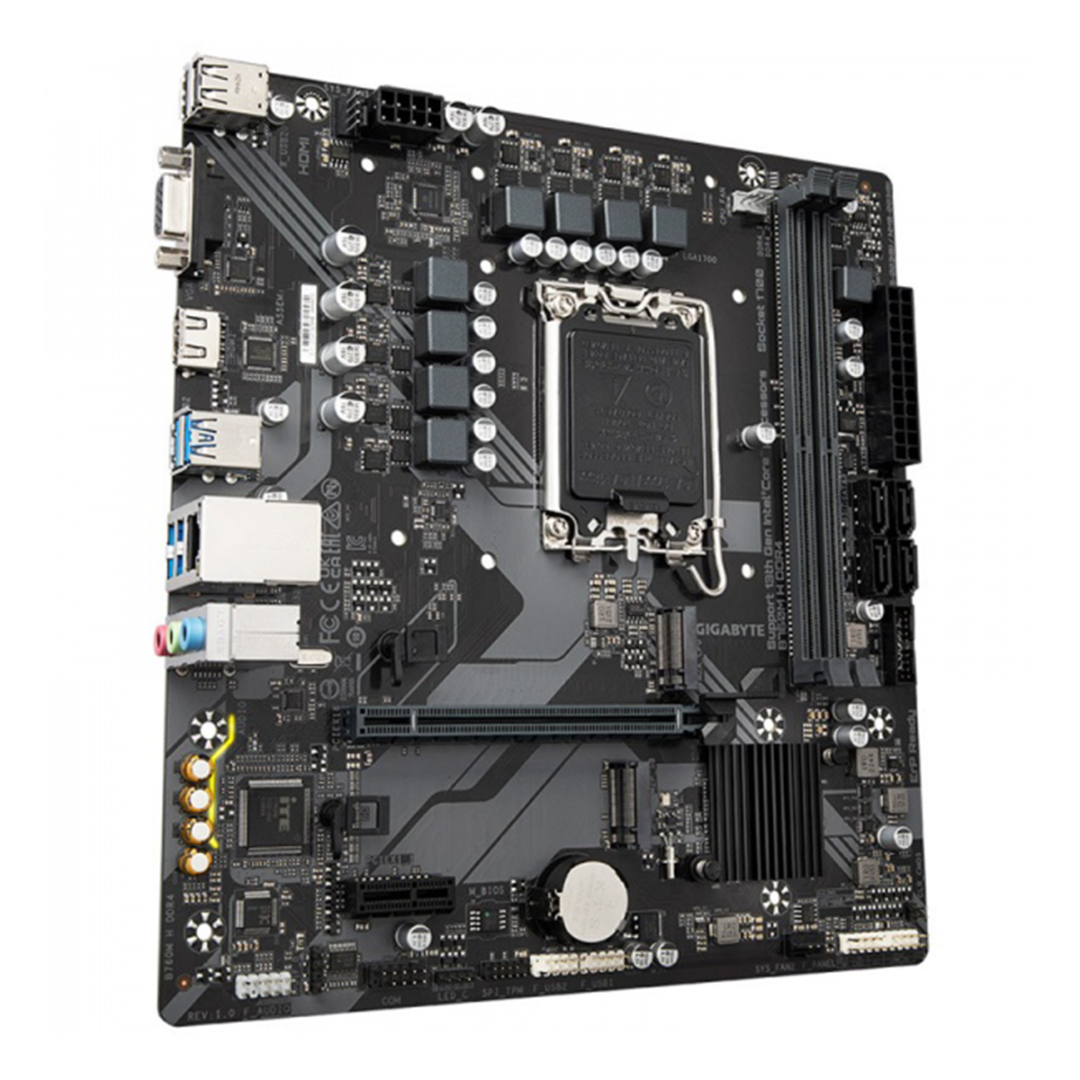

The Micro-ATX mainboard Gigabyte B760 H with Intel B760M chipset in detail
The Gigabyte B760 H is a Micro-ATX mainboard with the Intel B760M chipset and the LGA 1700 socket. The mainboard is particularly suitable for Intel Core CPUs from the Alder Lake and Raptor Lake series. It supports DDR4 memory with up to 3,200 MHz and also offers helpful features such as heat spreaders for VRMs and chipset or Dr.MOS for automatic voltage modulation.
Note: This mainboard supports RAM with the DDR4 standard. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For the best possible performance of the processor, it is recommended to carry out regular BIOS updates for the mainboard. This applies in particular to mainboards that may have been delivered by the manufacturer with an early BIOS version.

Our King Mod Service will be happy to update the BIOS to the latest version in advance:
Add BIOS update service to cart now

TECHNICAL DETAILS:
PROCESSOR
– Processor manufacturer: Intel
– Processor socket: LGA 1700
– Compatible processors: Intel Celeron, Intel Pentium Gold
– Maximum number of SMP processors: 1
– Supported processor slots: LGA 1700
– STORAGE
– Supported memory: DDR4-SDRAM
– Number of memory slots: 2
– Memory type: DIMM
– Memory channels: Dual channel
– Without ECC:
– Supported memory speeds: 2133, 2400, 2666, 2933, 3000, 3200 MHz
– Supported memory clock speed (max): 3200 MHz
– RAM memory maximum: 64 GB
– MEMORY CONTROLLER
– Supported storage drive interfaces: M.2, SATA III
– RAID support:
– RAID levels: 0, 1, 5, 10
– INTERNAL I/O CONNECTIONS
– Number of USB 2.0 interfaces: 2
– USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
– SATA III ports: 4
– Front panel audio connector:
– Front panel connector:
– ATX power connector (24-pin):
– CPU fan connector:
– EPS power connector (8-pin):
– TPM connector:
– Serial port headers: 1
