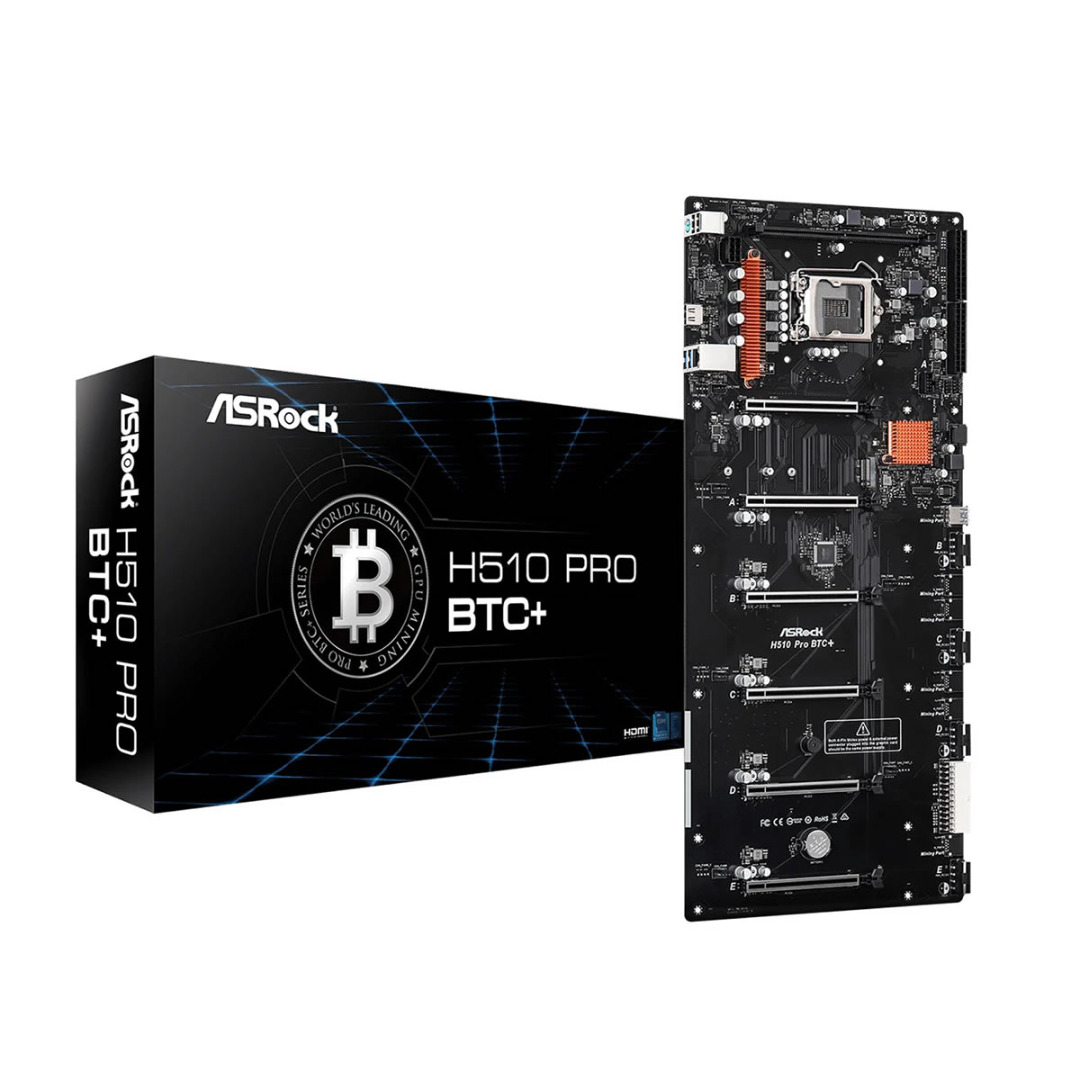

ASRock H510 Pro BTC Intel Socket 1200 Cryptocoin Mining Bitcoin Motherboard

Description

LEGENDARY PERFORMANCE, EXTREME DURABILITY
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining. This motherboard comes fully equipped with six PCI Express 3.0 x16 slots and a USB mining port for you to install up to Seven graphics cards. There is also an extra 24-pin ATX connector for easy multiple power supply setups. You also get a fully independant power rail which is ideal for more flexible power management to PCIe slots. Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Intel H510Chipset
Intel Core™ 10th&11th GenCompatible CPU
6 x PCI Express 3.0 x16Slots
Built for Power
1. 4 Power Phase Design
2. Supports SATA Type M.2 SSD
3. Riser Kit Free & Steel Slot Design
4. Onboard PWR On/Reset Button
5. 8 Fan Headers for System Fans
6. 2 Extra 24-pin ATX Power Connector for Easy Multiple Power Supply Setup
7. Onboard USB Type PCIe x1 Minit Port for Even More Graphics Cards Setup
8. Fully Independant Power Rail

Smart PCIe State Detection
USB Type PCIe x1 Mining PortsThis motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard. There is also an onboard USB Type PCIe x1 mining ports for setting up even more graphics cards.
Durable PCI-e Steel Slots
back

Riser Kit Free
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely. Install graphics cards directly on the motherboard without using riser kits to ensure ultimate stability.

Additional Features of your ASRock Motherboard
Full Spike ProtectionSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
down

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Core Specifications
Edition H510 Pro BTC+
Form Factor
CPU Socket 1200
Chipset Intel H510
RAM Memory Support
Memory Type DDR4
Memory Channel Single (1)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
DDR4 – 2133
DDR4 – 2400
DDR4 – 2666
DDR4 – 2800
DDR4 – 2933
DDR4 – 3200

Max. Memory Capacity 32GB (1x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots 1 x M.2, 22-80/110, SATA
SATA Support SATA3
RAID Support via
Storage Mode Support
AHCI
Hot Plug
NCQ

Internal I/O
3 x 24-pin (Power)
8 x 4-pin CHA_FAN connector
1 x 4-pin CPU Fan Connector
4 x 4-pin PCIe (Power)
1 x 8-pin (Power)
1 x Power button
1 x Power LED / Speaker Header
1 x Reset Button
1 x System panel connector
1 x TPM (SPI_TPM) header
1 x USB 2.0 Header

External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
1 x HDMI
1 x PS/2 Keyboard/Mouse Combo
1 x RJ-45 with LED
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A

Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 501 x 224 mm
