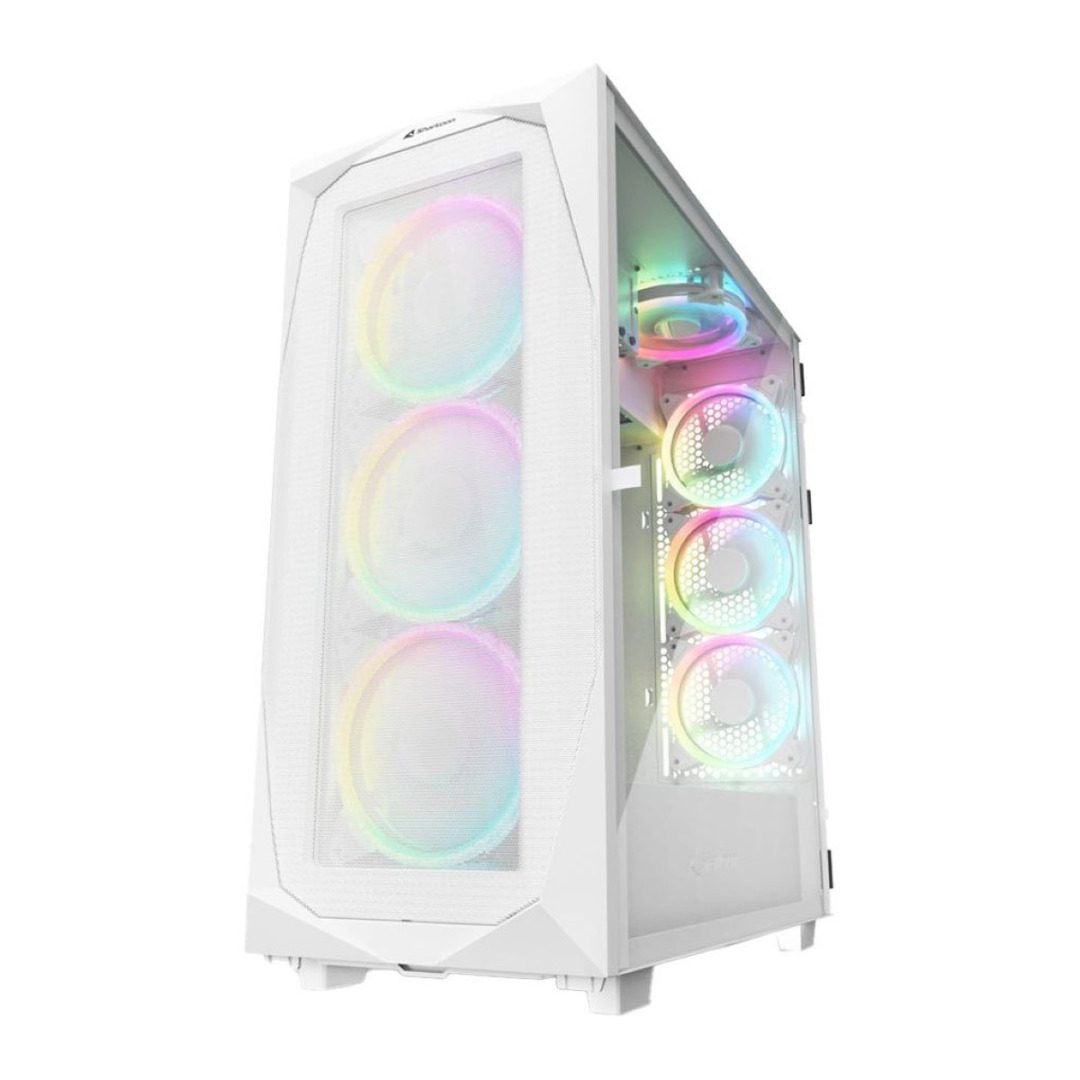

Sharkoon REV300 White ATX Mid Tower Tempered Glass PC Gaming Case

Description

Revolutionize Your Layout
With Sharkoon’s REV series, they turned traditional case design the other way around. The inside can be viewed through a tempered glass side panel, positioned on the right of the case, perfect for anyone who wants to see their machine in full action on the other. What makes this tower stray further from convention is the routing of components around a 90-degree rotated mainboard. The cables and connections from the mainboard are led into a special cable compartment on the top of the case. The I/O panel not only provides four conventional USB connections but also offers a port for devices that require a USB Type-C connection.

Stately Sized Enclosure
The REV300 stands out thanks to its generous size and elegant style. Its angular, accented shape and mesh cover make the RGB LED fans stand out and look ultra-futuristic. Seven fully addressable RGB LED fans immerse the sizable case in bright colors, turning it into a dream for RGB enthusiasts.

Maximum Airflow. Maximum Power
Any hardcore gamer knows that airflow is everything. The REV300 is best equipped for this. Seven fans come pre-installed in the case, so you’re immediately ready to benefit from maximum cooling once you load your components in. A mesh grille extends over the entire front panel, clearing the way for ample air intake, which is fed through three 140mm RGB LED fans. Three more 120mm fans are installed at the rear to create a controlled, ultra-cool climate. If water cooling is preferred, two radiators can be installed within the REV300 at the same time. A 360mm radiator can be installed at the rear, while there is even space for a gigantic 420mm radiator behind the front panel.

For Systems That Deserve to be Seen
The REV300 provides a picturesque angle into the inside of the case. A tempered glass side panel on the right side of the unit allows the internals to get the show-off they deserve. The side panel is conveniently rested on hinges at the rear, making it easy to open and close, and a magnetic catch ensures that everything is otherwise tightly sealed. Screws or any other fiddly elements are completely absent from view.

Make Room for Your Monster Build
No case in the REV series was as big as the REV300. Accordingly, the ATX case creates plenty of space for large and powerful hardware. Graphics cards with a length of up to 34.5 cm can be easily installed. A power supply with a length of 27 cm can be integrated, as well as a CPU cooler with a height of 17.7 cm too. If masses of data storage are needed, you can equip the REV300 with four 3.5″ or five 2.5″ storage drives. In addition, dust filters help keep the inside of the case clean. A particularly large pull-out dust filter is placed on the bottom panel to stop dust from entering from underneath the case.

Features
Inverted Window: Enjoy the view of your setup from a different side compared to other towers.
Motherboard RGB Compatibility: Supports ASUS Aura, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock Sync.
Manual LED Control: 5V 3-Pin ARGB Connector allows for maximal colour control.
Optimal Airflow: 7 pre-installed 120mm ARGB PMW fans (4 Intake, 3 Rear).
Mesh Design: Specialist front panel offers powerful air cooling.
Cable Management: Arrange your cables around a 90-degree rotated mainboard.
Tempered Glass Door: Clear, screwless door for slick aesthetics and easy access.
Dust Filter: Retractable panel at bottom to ease dust buildup.

Specifications:
Core Chassis Specifications
Case Edition: Sharkoon REV300 White
Case Form Factor: Mid Tower
Motherboard Form Factor:
ATX
MicroATX
Mini-ITX
Reverse Connection Compatible: No
I/O, Bays & Expansion
Front/Side/Top Panel I/O:
1 x Headphone Out
1 x Mic In
1 x Power Button
2 x USB 2.0
2 x USB 3.0
1 x USB 3.2 Gen2 Type-C
Drive Bays:
5 x 2.5″ Internal
4 x 3.5″ External
Standard Expansion Slots: 8
Vertical Expansion Slots:
Fans & Filters
Fan Bays:
4 x 120mm
3 x 140mm
Fans Included:
4 x 120mm
3 x 140mm
Fan Controller/Hub: Built-in Fan Controller
Dust Filters: Bottom
Liquid Cooling Support
Front Radiator Compatibility: 1 x 360/420mm
Top Radiator Compatibility:
Bottom Radiator Compatibility:
Rear Radiator Compatibility: 1 x 360mm
Side Radiator Compatibility:
Clearances
Max CPU Cooler Height: 177 mm
Max GPU Card Length: 345 mm
Cable Routing Space:
Side Panels
Window/s: Yes
Window Configuration: 1 x Main Side
Window Construction: Tempered Glass
LED Lighting Functionality
LED Lighting: Yes
LED Lighting Emitters: Included Addressable LED Fan/s
LED Lighting Colour:
LED Lighting Support & Control:
Compatible with ASRock PolyChromeSync
Compatible with ASUS AURA Sync
Compatible with Gigabyte RGB Fusion
Compatible with MSI Mystic Light Sync
Control via Inc. Controller/Hub (Buttons/Switches)
Power Supply Compatibility
PSU Included: No
PSU Wattage (If Included):
PSU 80+ Rating (If Included):
PSU Support:
PSU Mounting Location:
Max PSU Length: 270 mm
Chassis Physical Specifications
Colour: White
Chassis Construction Materials: Metal
Dimensions: 238 x 550 x 501 (WxHxD mm)
Weight: 10.4 kg (Approx)
